Design Library | Description | Standard |
![]() |

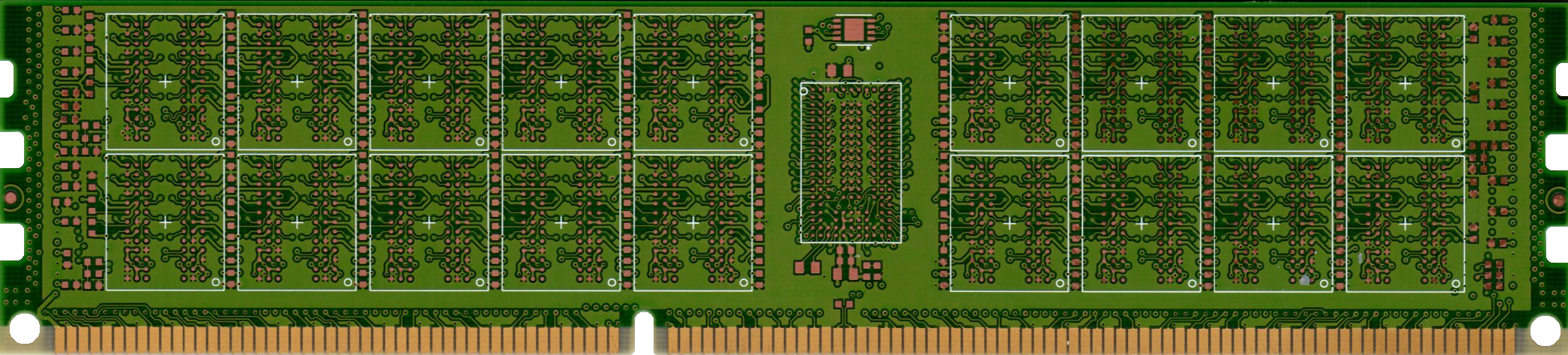

DDR3 RDIMM, double sided 4Rx4 DDP |
JEDEC raw card AE0 (proposed) Compatible with JEDEC RDIMM raw card AB0 |
![]() |

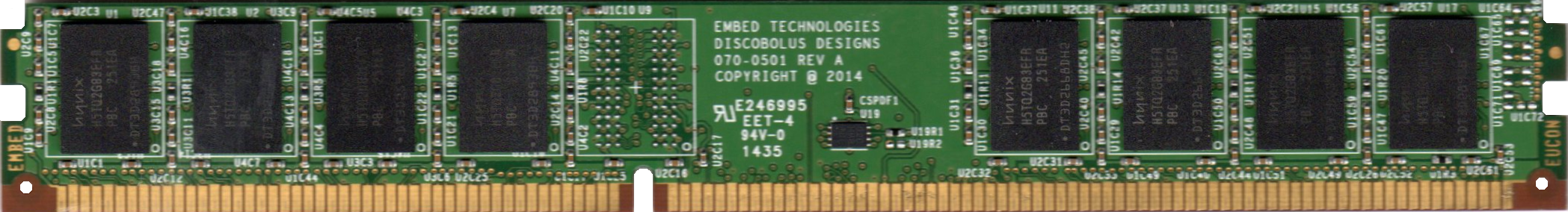

DDR3 ULP UDIMM 17.9mm tall, single
sided, 1Rx8 x64 or x72 with BOM options |
Compatible with JEDEC UDIMM raw card J0 |
![]() |
DDR3 ULP UDIMM 17.9mm tall, double
sided, 2Rx8 x64 or x72 with BOM options |
Compatible with JEDEC UDIMM raw card K0 |
![]() |

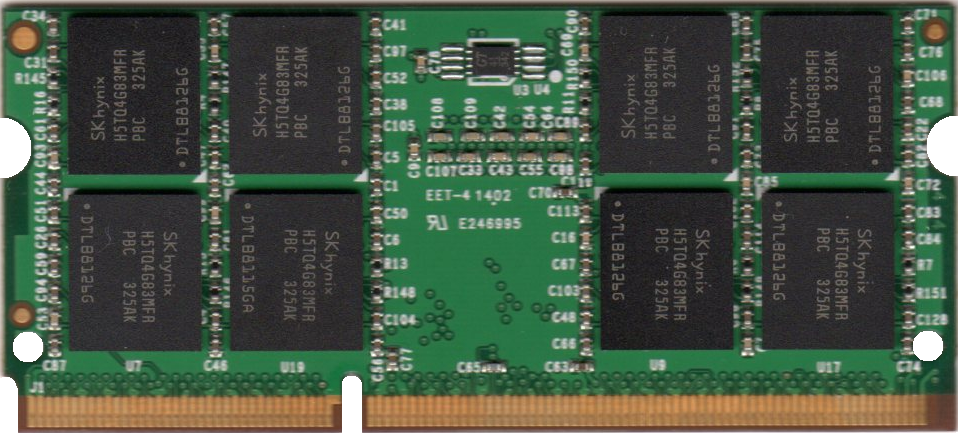

DDR3 SO-DIMM, single sided, standard key 1Rx8 or 2Rx8 with BOM options |
JEDEC DDR3 SO-DIMM raw card K1 |
![]() |
DDR3 72b-SO-DIMM, single sided,
standard key 1Rx8 with ECC |
Compatible with JEDEC DDR3 72b-SO-DIMM raw card C1 |
![]() |
DDR3 SO-DIMM, single sided,
standard key 1Rx8 |

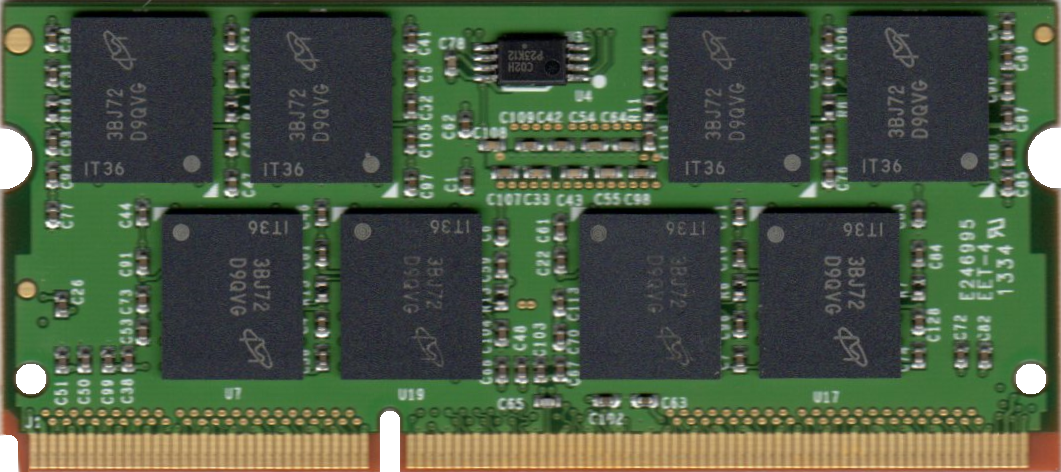

JEDEC DDR3 SO-DIMM raw card K0 |
![]() |
DDR3 SO-DIMM, single sided, 6 layer
PCB, standard key 1Rx8 |
Compatible with JEDEC SO-DIMM raw card K1 |
![]() |

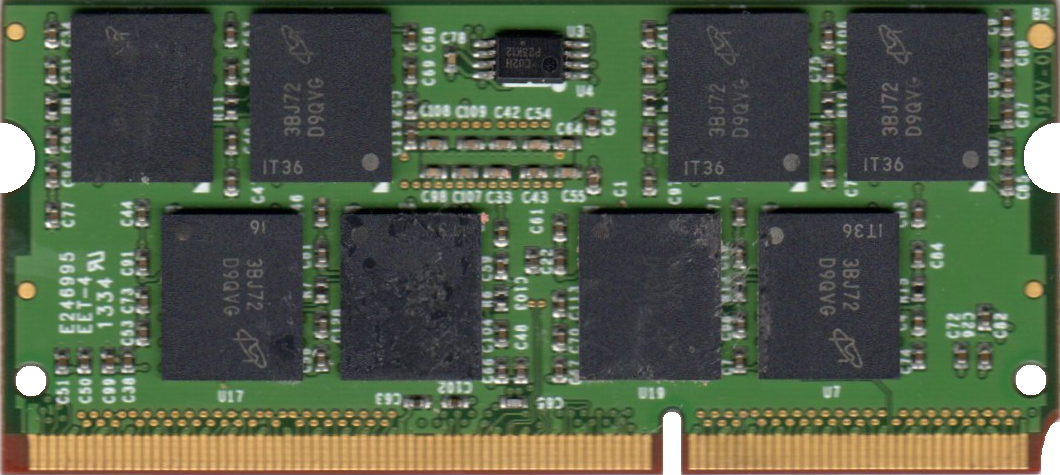

DDR3 SO-DIMM, single sided,
reverse key 1Rx8 |

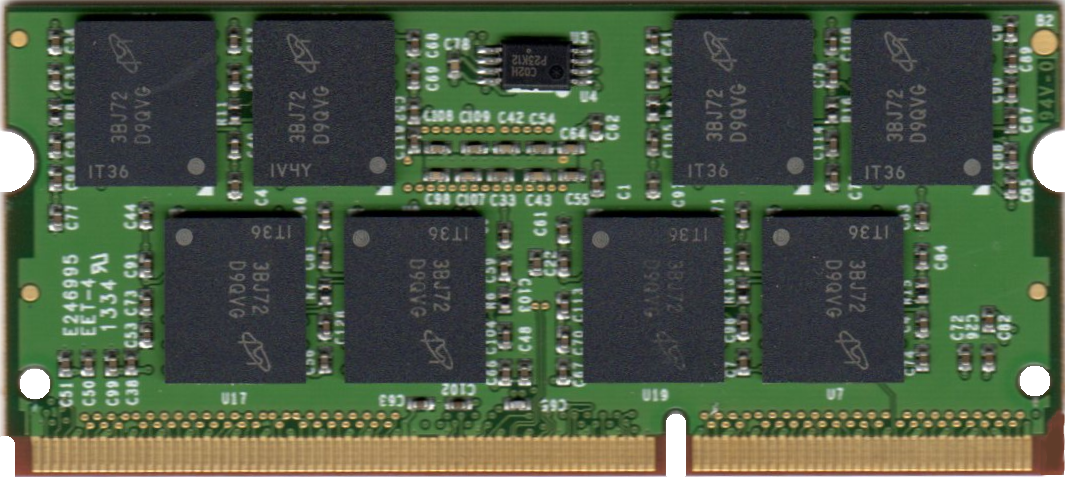

JEDEC DDR3 SO-DIMM raw card L0 |
![]() |
DDR3 SO-DIMM, single sided, 6
layer PCB, reverse key 1Rx8 |
Compatible with proposed JEDEC SO-DIMM raw card L1 |
![]() |
DDR3 SO-DIMM, double sided,
standard key 2Rx8 |
JEDEC DDR3 SO-DIMM raw card J0 |
![]() |
DDR3 32b-SO-DIMM, single sided,
very low profile 1Rx8 or 2Rx8 with BOM options |
Compatible with JEDEC DDR3
32b-SO-DIMM raw cards A0, B0 |
![]() |
DDR3 DIMM Line Conditioning Module 2Rx4 emulation |
None -- Proprietary design Patent Pending |
![]() |
DDR4 DIMM Line Conditioning Module 2Rx4 emulation |
None -- Proprietary design Patent Pending |
![]() |
DDR4 SO-DIMM Line Conditioning Module 2Rx4 emulation |
None -- Proprietary design Patent Pending |
|

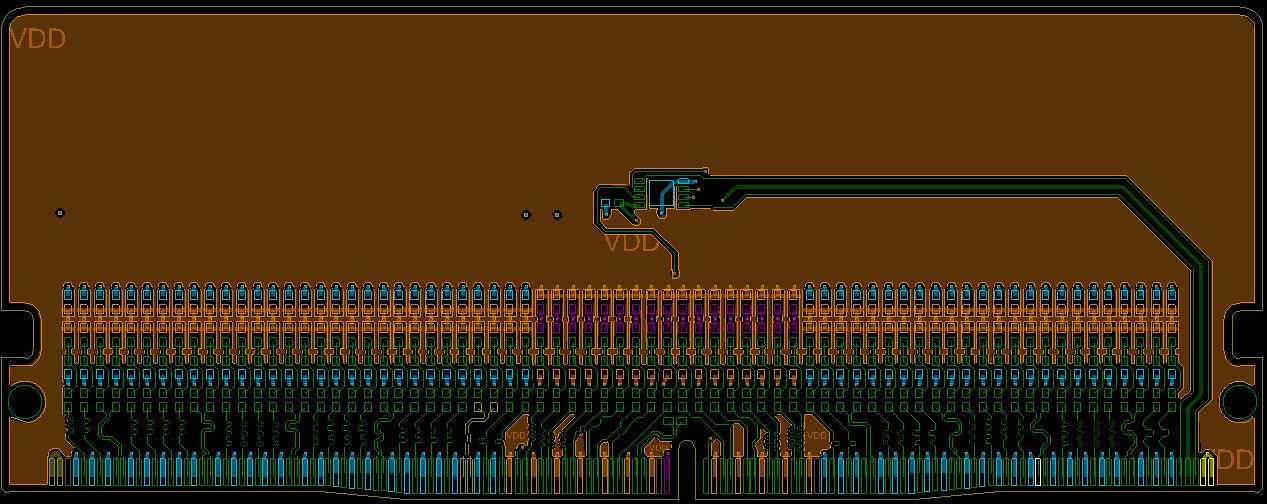

DDR4 Mini-DIMM Line Conditioning Module 2Rx4 emulation |
None -- Proprietary design Patent Pending |
